- EOD EQUIPMENT SOLUTIONS
DynaSEALR Q5
A compact, mobile explosive containment chamber engineered for rapid deployment and controlled handling of pipe bombs, grenades and small IED threats.
- OVERVIEW
Mobile Containment for Rapid Response
The DynaSEALR Q5 is a versatile explosive containment chamber designed for EOD teams, police departments and specialist security units. Its compact form allows the Q5 to be positioned close to an identified threat and used during render-safe operations.
The chamber can be deployed at security checkpoints or mounted on a drive unit, vehicle or SUV/truck for greater operational mobility. With gas-tight sealing, multiple-detonation capability and a cost-effective configuration, the Q5 provides an additional layer of protection for explosive-threat response.
Gas-tight Sealing
A gas-tight sealing system supports controlled containment during explosive-threat operations.
High Mobility
The Q5 can be configured for frame-mounted, drive-unit or vehicle-mounted deployment.
Versatile Deployment
Its compact configuration enables positioning at checkpoints and close to identified threats.
Cost-Effective Design
A practical alternative for organizations seeking mobile explosive containment without a larger containment vessel.
- TECHINICAL SPECIFICATIONS
DynaSEALR Q5 Technical Specifications
The DynaSEALR Q5 combines compact dimensions, controlled explosive capacity and flexible mounting configurations for demanding EOD applications.
Dynasafe recommends having a partition be built between the driver and the chamber.
Technical Specifications
Explosive Rating
1 kg / 2.2 lbs. TNT-eq
Repeated Detonations
5
Maximum One-time Detonation
2 kg / 4.4 lbs. TNT-eq
Weight
~340 kg / 749.6 lbs.
Length · Closed
~1100 mm / 43.3"
Length · Open
~1675 mm / 66"
Width
~670 mm / 26.4"
Height
~740 mm / 29"
Door Size
~970 mm / 38"
Package Size (L × W × H)
550 × 400 × 250 mm / 21.6" × 15.7" × 9.8"
Maximum Weight of Object
25 kg / 55 lbs.
- KEY FEATURES
DynaSEALR Q5 Built for Mobile EOD Operations
The Q5 combines containment performance, mobility and practical deployment options to support controlled response across varied operational environments.
Fragmentation Shield
Provides additional containment capability against fragmenting IED
Pipe Bomb Holder
Allows placement of IED in center of the chamber platform to ensure total containment

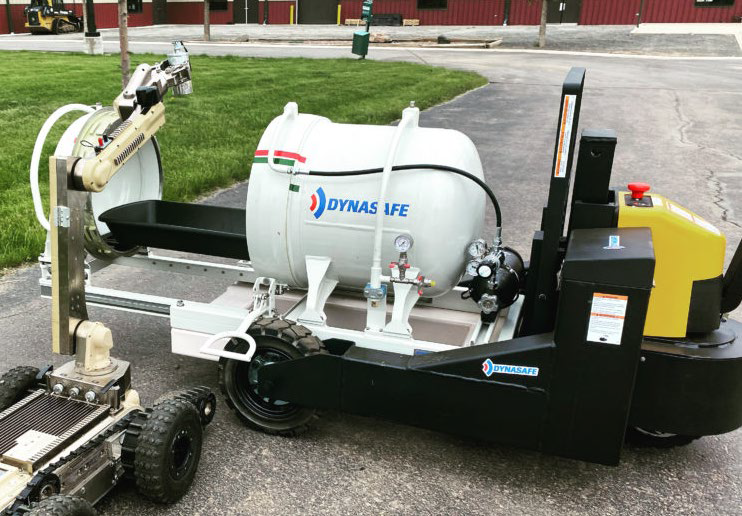

Drive Unit
Enables the operator to navigate the chamber in tight spaces, i.e., sports stadium seating, convention halls.
Gas Sampling Unit
Pulls liquid and/or vapor samples pre- and post-blast from closed chamber for analysis

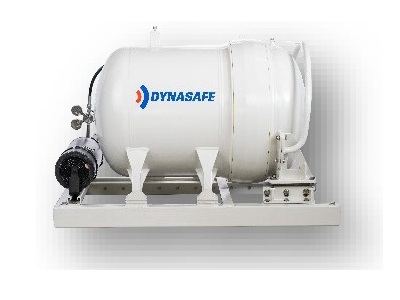

Frame Mounted:
Suitable for stationary or controlled deployment requirements.

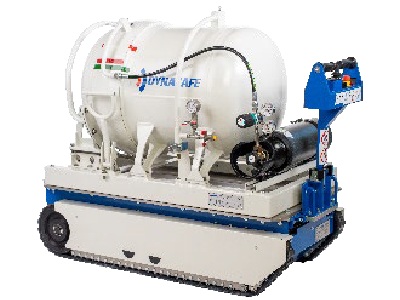

Drive Unit:
Enables mobile operation in confined or challenging spaces.

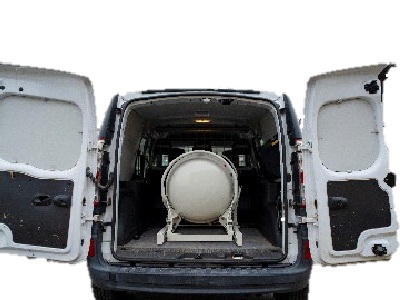

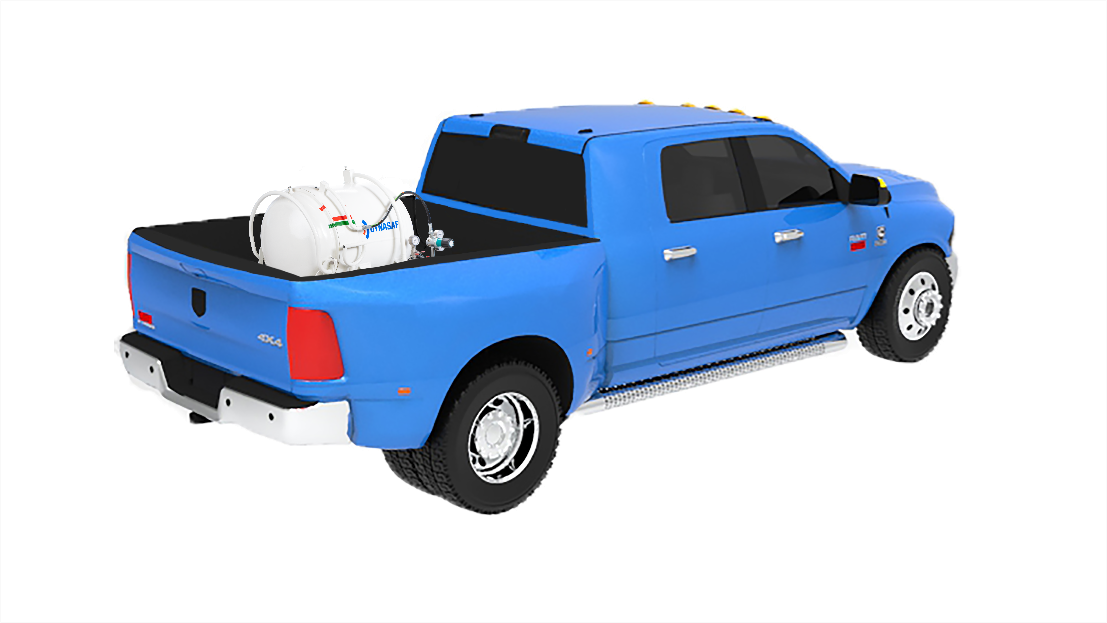

Vehicle Mounted:
Supports rapid deployment using compatible vehicles, including SUVs and trucks.
- FOCUS SEGMENTS & APPLICATIONS
Designed for Diverse Threat Response
The DynaSEALR Q5 is suited to organizations requiring a compact and mobile containment solution for explosive-threat response. Its flexible mounting configurations support deployment across security, public-safety and specialist EOD environments.
DEFENSE
EOD & Ordnance Response
Purpose-built containment for military EOD and ordnance-response environments.
CIVIL AVIATION
Airport Security Operations
Containment support for airport security and controlled threat-response operations.
CARGO OPERATORS
Cargo Security Operations
Solutions for explosive-threat management across cargo handling and logistics environments.
AIRLINES
Airline Security Operations
Containment capabilities for airline operational and passenger-safety requirements.
HOME AFFAIRS
Public Security Agencies
Support for government security and specialist explosive-response agencies.
RAILWAYS
Rail & Transit Security
Containment solutions for rail networks, stations and transit environments.
HOSPITALITY
Venue Security Operations
Designed for hotels, venues and guest-facing environments with public safety requirements.
COMMERCIAL ESTABLISHMENTS
High-Footfall Facilities
Protection solutions for business sites and locations with significant public movement.
EMBASSIES & GOVERNMENT ESTABLISHMENTS
Diplomatic Security Operations
Containment capabilities for diplomatic missions and government facilities.
- FREQUENTLY ASKED QUESTIONS (FAQs)
Everything About the DynaSEALR Q5
What is the DynaSEALR Q5?
A versatile and mobile explosive containment chamber described as an alternative to larger containment chambers and a tool for rendering safe an IED.
What is the explosive rating?
The brochure states an explosive rating of 1 kg / 2.2 lbs. TNT-eq, 5 repeated detonations, and a maximum one-time detonation of 2 kg / 4.4 lbs. TNT-eq.
How can the Q5 be deployed?
It can be placed at a security checkpoint, mounted on the Drive Unit, or mounted on an SUV or truck.
What object limits are specified?
The brochure specifies a package size of 550 × 400 × 250 mm and a maximum object weight of 25 kg / 55 lbs.
Which options are available?
Fragmentation Shield, Pipe Bomb Holder, Drive Unit and Gas Sampling Unit.
What vehicle-mounting guidance is provided?
Dynasafe recommends having a partition built between the driver and the chamber when the Q5 is vehicle mounted.
