DynaSEALR X Series
High-capacity explosive containment chambers X10 / X12 engineered for EOD teams to safely contain, store and transport UXO, IEDs, chemical and conventional munitions.
- OVERVIEW
Advanced Containment For Frontline EOD
The DynaSEALR X Series is designed around the operational requirements of frontline EOD technicians handling complex explosive threats. Large 270° rotating doors provide easier loading access, while a 50-metre wired remote control helps operators maintain distance during chamber operation.
Its modular design allows configurations to be tailored to different requirements for mobility, loading volume and explosive capacity. With blast-tested construction, gas-tight CBRE pneumatic sealing and repeated-detonation capability, the X Series provides robust containment for demanding EOD operations.
Blast Tested
Every unit is blast tested before shipping to verify containment performance.
DDESB Approved
The X Series is approved for ten repeated detonations at its specified explosive rating.
Gas-Tight CBRE Sealing
A pneumatic sealing system provides gas-tight containment for applicable chemical, biological, radiological and explosive hazards.
Large Rotating Doors
Large doors rotate through 270° to simplify loading and improve access for EOD technicians.
Remote Door Operation
A wired three-button remote control enables door operation from up to 50 metres away.
Robot Operation
Two robot buttons provide an alternative method for opening and closing the chamber using a remotely operated vehicle.
Battery Powered
The chamber operates using two 12-volt batteries for its operating systems.
Modular Configuration
The modular platform can be configured around different mobility, loading-volume and explosive-capacity requirements.
- TECHINICAL SPECIFICATIONS
DynaSEALR X Series Technical Specifications
Available in X10 and X12 configurations, the DynaSEALR X Series provides different containment capacities, dimensions and loading volumes for varied EOD requirements.
Technical Specifications
Characteristic
DynaSEALR X10
DynaSEALR X12
Explosive Rating — DDESB Approved
5 kg / 11 lbs. TNT-eq
8 kg / 17.64 lbs. TNT-eq
Repeated Detonations
10
10
Maximum One-time Detonation
15 kg / 33 lbs. TNT-eq
20 kg / 44 lbs. TNT-eq
Weight
~2,500 kg / 5,512 lbs.
~3,900 kg / 8,600 lbs.
Length · Closed
~2,030 mm / 79.9"
~2,300 mm / 90.6"
Length · Open
~2,760 mm / 108.7"
~3,030 mm / 119.3"
Width
~1,300 mm / 51.2"
~1,550 mm / 61.0"
Height
~1,510 mm / 59.5"
~1,700 mm / 67"
Door Size
~970 mm / 38"
~1,140 mm / 44.9"
Package Size (L × W × H)
900 × 500 × 450 mm / 35.4" × 19.7" × 17.7"
900 × 800 × 650 mm / 35.4" × 31.5" × 25.6"
Maximum Weight of Object
50 kg / 110 lbs.
70 kg / 154 lbs.
- KEY FEATURES
DynaSEALR X Series Engineered For Demanding EOD Operations
The DynaSEALR X Series combines tested containment, remote operation and flexible configuration options to support controlled explosive-threat handling.
Fragmentation Shield
Provides protection against leaking chemical fluids and fragment damage to chamber walls.
Radiation Shielding
An integrated 30 mm lead layer provides protection against gamma radiation.
Wireless Remote Control
Enables wireless operation of the chamber doors and sealing system.
CCTV System
Provides monitoring during loading or unloading of an IED into the chamber.
Decontamination Treatment System
Supports contained-gas treatment and chamber decontamination.
Gas Sampling Unit
Allows liquid and vapor samples to be collected before and after a blast for analysis.
Aluminium Enclosure
A retractable all-weather cover protects trailer-mounted chambers from the elements and helps conceal them from public attention.
Low Maintenance
Designed to provide lower maintenance costs compared with TCVs using hydraulic systems.

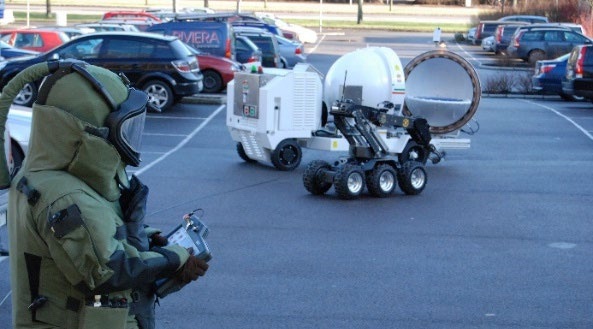

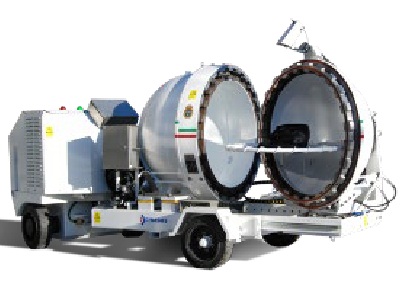

Robotic Platform:
Enables mobile deployment using a robotic platform for specialist operational requirements.

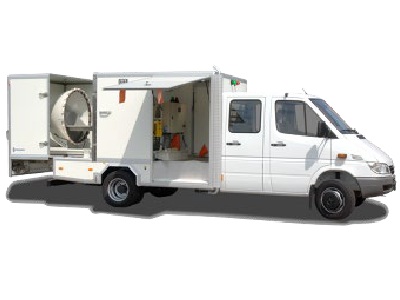

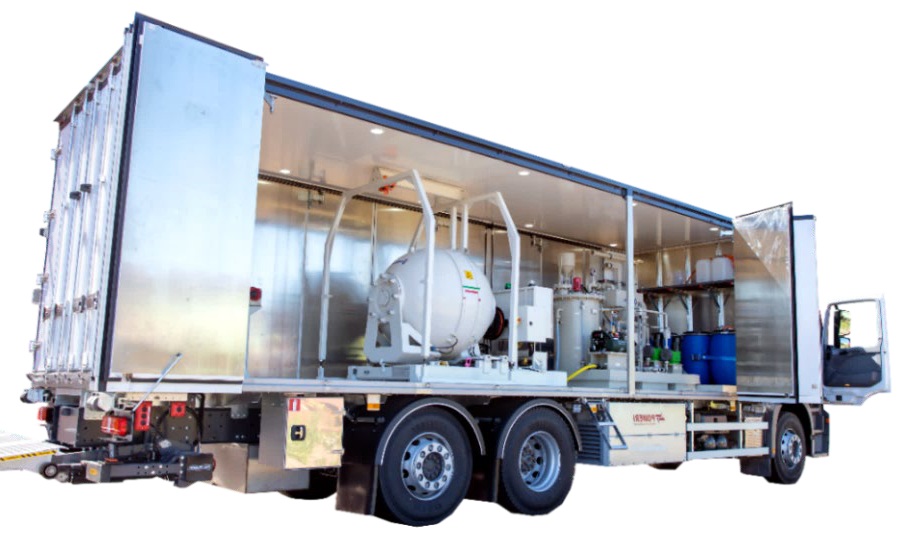

Vehicle Mounted:
Allows the chamber to be integrated with a suitable vehicle for mobile EOD deployment.

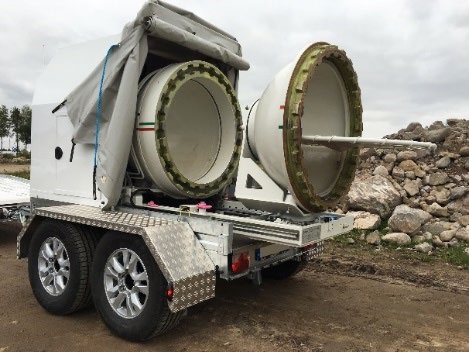

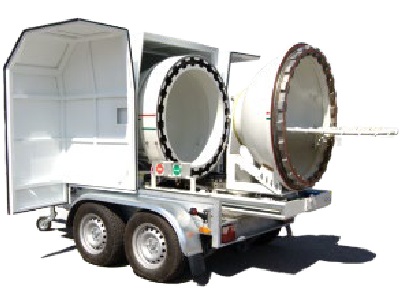

Trailer Mounted:
Provides trailer-based transportation for operational movement between locations.
- FOCUS SEGMENTS & APPLICATIONS
Protection Across Critical EOD Environments
The DynaSEALR X Series is designed for specialist organizations requiring high-capacity containment and controlled handling of complex explosive threats. Its configurable mobility and loading options support deployment across defense, law enforcement, transportation, government and other high-security environments.
DEFENSE
EOD & Ordnance Response
Purpose-built containment for military EOD and ordnance-response environments.
CIVIL AVIATION
Airport Security Operations
Containment support for airport security and controlled threat-response operations.
CARGO OPERATORS
Cargo Security Operations
Solutions for explosive-threat management across cargo handling and logistics environments.
AIRLINES
Airline Security Operations
Containment capabilities for airline operational and passenger-safety requirements.
HOME AFFAIRS
Public Security Agencies
Support for government security and specialist explosive-response agencies.
RAILWAYS
Rail & Transit Security
Containment solutions for rail networks, stations and transit environments.
HOSPITALITY
Venue Security Operations
Designed for hotels, venues and guest-facing environments with public safety requirements.
COMMERCIAL ESTABLISHMENTS
High-Footfall Facilities
Protection solutions for business sites and locations with significant public movement.
EMBASSIES & GOVERNMENT ESTABLISHMENTS
Diplomatic Security Operations
Containment capabilities for diplomatic missions and government facilities.
- FREQUENTLY ASKED QUESTIONS (FAQs)
Everything About the DynaSEALR X Series
What is the DynaSEALR X Series?
The DynaSEALR X Series is a range of explosive containment chambers designed for EOD teams to safely contain, store and transport UXO, IEDs, chemical and conventional munitions.
What configurations are available in the X Series?
The series includes the DynaSEALR X10 and DynaSEALR X12, offering different explosive ratings, dimensions, loading volumes and maximum object weights.
What are the explosive ratings of the X10 and X12?
The X10 has a DDESB-approved explosive rating of 5 kg / 11 lbs. TNT-equivalent, while the X12 is rated at 8 kg / 17.64 lbs. TNT-equivalent.
How many repeated detonations can the X Series withstand?
Both the DynaSEALR X10 and X12 are designed for 10 repeated detonations at their specified explosive ratings.
How does the X Series support safer remote operation?
The chambers feature a wired three-button remote control that allows door operation from up to 50 metres away. Robot buttons also allow alternative opening and closing using a remotely operated vehicle.
What mobility options are available?
The DynaSEALR X Series can be configured for robotic platform, vehicle-mounted and trailer-mounted applications, depending on operational requirements.
What optional equipment is available?
Options include a fragmentation shield, radiation shielding, wireless remote control, CCTV system, decontamination treatment system, gas sampling unit and aluminium enclosure.
