- CBRNe SOLUTIONS
Combined FTIR & Raman (VipIR)
Combined FTIR and Raman analysis for confident identification of unknown drugs and hazardous chemicals.
- OVERVIEW
Dual-Spectroscopy Chemical Identification In One Device
VipIR combines FTIR and Raman spectroscopy in a single handheld device, allowing operators to collect two distinct spectra from the exact same sample through one sample interface.
Its “Sample Once, Measure Twice” approach generates two unique analytical data points and one confidence-based identification result, providing greater insight than relying on a single analytical technique.
VipIR supports analysis of solids, liquids, samples in standard vials and substances in containers using its flexible Raman probe, while SERS capability supports low-concentration applications such as synthetic opioids and fentanyl.
With extensive FTIR and Raman libraries covering drugs, TICs/TIMs, consumer products, chemical warfare agents and explosives, VipIR is designed for demanding forensic and chemical identification operations.
Sample Once, Measure Twice
VipIR sequentially collects both FTIR and Raman spectra from the same sample, producing two analytical data points and one confidence-based identification.
Extensive Dual Spectral Libraries
The system includes 23,000+ FTIR spectra and 16,000+ Raman spectra, covering drugs, TICs/TIMs, consumer products, CWAs, explosives and chemicals.
Multiple Sampling Options

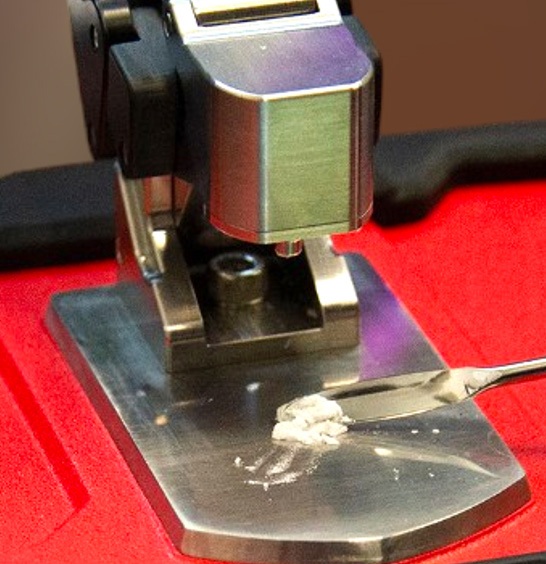

VipIR supports FTIR and Raman analysis through an ATR crystal, flexible Raman probe, integrated vial holder and SERS accessory for specialized low-concentration applications.

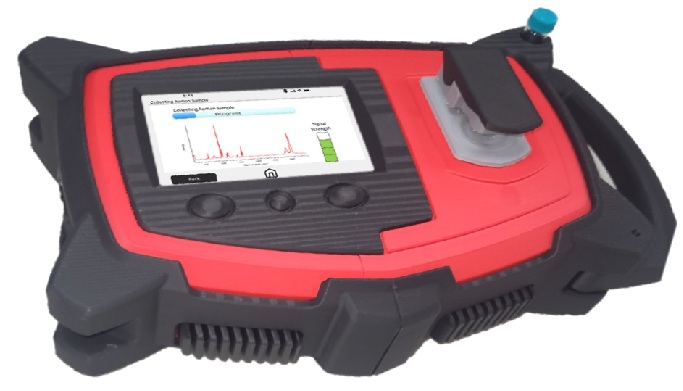

Rugged Handheld Platform
The device measures 14.6 × 8.6 × 5.8 inches, weighs approximately 4.3 kg, and features IP67 ruggedness with a 5-inch touchscreen and rechargeable Li-ion battery.
- TECHINICAL SPECIFICATIONS
VipIR FTIR Raman Technical Specifications
The VipIR specification sheet combines the key FTIR, Raman, sampling, environmental and connectivity specifications into a single field-deployable platform.
Technical Specifications
Technical Parameter
VipIR Specification
Technology
Combined FTIR + Raman
Sample Types
Solids, liquids, containers with Raman probe, vials
FTIR Range
4000–650 cm⁻¹
FTIR Resolution
4 cm⁻¹
Raman Range
250–2875 cm⁻¹
Raman Resolution
7–10.5 cm⁻¹
Raman Laser
785 nm, up to 450 mW
FTIR Sampling
ATR crystal
Raman Sampling Options
Flexible sampling probe, SERS accessory, integrated vial holder
FTIR Library
23,000+ spectra
Raman Library
16,000+ spectra
Chemical Coverage
TICs, narcotics, CWA, explosives, consumer products, chemicals
Mixture Analysis
Reports all observable components in a mixture
Dimensions
14.6 × 8.6 × 5.8 in / 37.1 × 21.8 × 14.7 cm
Weight
9.5 lb / 4.3 kg
Ruggedness
IP67
Display
5-inch touchscreen
Power
Rechargeable Li-ion battery and wall power adapter
Communications
Wi-Fi, LTE, TeamLeader App
Decontamination
Spray, wipe-down or dunk with bleach or detergent
- KEY FEATURES
Advanced Dual-Spectroscopy Features For Identification
VipIR integrates two complementary analytical technologies with versatile sampling accessories, extensive libraries and connected field workflows to support identification of unknown substances.
Combined FTIR & Raman Analysis
Collects both infrared and Raman spectra from the same sample.
"Sample Once, Measure Twice"
Creates two unique analytical data points and a single identification result.
ATR Crystal Analysis
Enables FTIR and Raman analysis through the sample interface.
Flexible Raman Probe
Supports identification directly on surfaces or through containers.
Integrated Vial Holder
Allows convenient analysis of substances contained in standard vials.
SERS Capability
Supports low-concentration applications, including synthetic opioids and fentanyl.
Extensive FTIR Library
More than 23,000 FTIR spectra.
Extensive Raman Library
More than 16,000 Raman spectra.
Broad Chemical Coverage
Libraries include drugs, TICs/TIMs, consumer products, CWAs, explosives and chemicals.
Sophisticated Mixture Analysis
Can report all observable components in a mixture.
Real-Time Analysis Display
Operators can view analysis progress and results directly on the device.
5-Inch Touchscreen
Provides a user-oriented interface for guided analysis workflows.
Wireless Communications
Wi-Fi and LTE connectivity support data sharing and updates.
TeamLeader App Integration
Enables results to be shared with team members.
Wireless Software Updates
Supports wireless updates to operating software and compound libraries.
IP67 Ruggedness
Designed for demanding field conditions.
Decontamination Support
The specification sheet states that the device can be spray, wipe-down or dunk decontaminated using bleach or detergent.
Lightweight Handheld Configuration
A portable platform for field-based chemical identification.
- FOCUS SEGMENTS & APPLICATIONS
Chemical Identification Across Critical Operations
VipIR is positioned in the supplied specification sheet for forensic identification of drugs and hazardous chemicals, with spectral libraries covering multiple chemical-threat and evidence categories.
DEFENSE
EOD & Ordnance Response
Purpose-built containment for military EOD and ordnance-response environments.
CIVIL AVIATION
Airport Security Operations
Containment support for airport security and controlled threat-response operations.
CARGO OPERATORS
Cargo Security Operations
Solutions for explosive-threat management across cargo handling and logistics environments.
AIRLINES
Airline Security Operations
Containment capabilities for airline operational and passenger-safety requirements.
HOME AFFAIRS
Public Security Agencies
Support for government security and specialist explosive-response agencies.
RAILWAYS
Rail & Transit Security
Containment solutions for rail networks, stations and transit environments.
HOSPITALITY
Venue Security Operations
Designed for hotels, venues and guest-facing environments with public safety requirements.
COMMERCIAL ESTABLISHMENTS
High-Footfall Facilities
Protection solutions for business sites and locations with significant public movement.
EMBASSIES & GOVERNMENT ESTABLISHMENTS
Diplomatic Security Operations
Containment capabilities for diplomatic missions and government facilities.
- FREQUENTLY ASKED QUESTIONS (FAQs)
VipIR Combined FTIR Raman Questions Answered
What is VipIR?
VipIR is a handheld device from 908 Devices that combines FTIR and Raman analysis in a single device for identification of drugs and hazardous chemicals. It sequentially measures both spectra from the same sample.
What does “Sample Once, Measure Twice” mean?
It means the operator analyzes the same sample using both FTIR and Raman spectroscopy. The two techniques generate two distinct spectra and data points that contribute to a single confidence-based identification.
What types of samples can VipIR analyze?
VipIR can analyze solids and liquids, samples in standard vials and substances in containers using its flexible Raman probe.
What substances are included in the VipIR libraries?
The supplied specification sheet lists libraries covering drugs, TICs/TIMs, consumer products, chemical warfare agents, explosives and chemicals, with more than 23,000 FTIR spectra and 16,000 Raman spectra.
Can VipIR analyze low concentrations of substances?
Yes. VipIR supports Surface-Enhanced Raman Spectroscopy (SERS) for low-concentration applications, including synthetic opioids and fentanyl.
Can VipIR identify components in a mixture?
Yes. The specification sheet describes sophisticated mixture analysis that can report all observable components in a mixture.
Is VipIR suitable for field operations?
The device is designed as a rugged handheld platform, with IP67 protection, a 5-inch touchscreen, rechargeable Li-ion battery, Wi-Fi, LTE and TeamLeader App connectivity. The specification sheet also describes decontamination by spray, wipe-down or dunk using bleach or detergent.
