- CBRNe SOLUTIONS
SEEKERe MDK/EDK
Automated Optics & Colorimetrics
Compact, rugged trace detection technology for rapid field screening of explosive threats, with automated colorimetric analysis for fast and consistent results.
- OVERVIEW
Compact Detection For Rapid Screening
The SEEKERe is a handheld trace detection system designed for rapid field screening in demanding security and response environments.
The EDK configuration is designed for explosive detection, while the MDK combines explosive and narcotics detection capabilities in one portable platform.
Using automated colorimetrics and dedicated detection cards, the system can analyze trace or bulk samples without relying on visual colour-reference interpretation.
Its compact, ruggedized and water-resistant design supports one-handed operation and deployment by EOD teams, law enforcement, HAZMAT personnel, security teams and other field operators.
SEEKERe EDK — Explosives Detection Kit
Designed specifically for explosive detection, including multiple explosive compound classes.
SEEKERe MDK — Multi Detection Kit
Combines explosive and narcotics detection capabilities in one handheld system.
Detection Cards
SEEKERe systems use dedicated consumable detection cards. The manufacturer lists cards for various explosive and narcotics categories, allowing the detection capability to be configured around operational requirements.
500 ng
Approximate detection limit for explosives and narcotics.
10–45 sec
Approximate sample analysis time.
IP66
Sealed, water-resistant and ruggedized enclosure.
100,000+
Tests that can be stored onboard.
- TECHINICAL SPECIFICATIONS
SEEKERe MDK/EDK Technical Specifications at Glance
The SEEKERe combines a compact handheld form factor with automated colorimetric analysis, rechargeable power and onboard data management for field detection operations.
Technical Specifications
Specifications
SEEKERe EDK
SEEKERe MDK
Detection Capability
Explosives
Explosives + Narcotics
Detection Technology
Automated Colorimetrics
Automated Colorimetrics
Detection Method
Detection cards / swab sampling
Detection cards / swab sampling
Approx. Detection Limit
~500 ng*
~500 ng*
Approx. Analysis Time
10–45 seconds*
10–45 seconds*
Weight
197 g / 6.94 oz / 0.43 lbs
197 g / 6.94 oz / 0.43 lbs

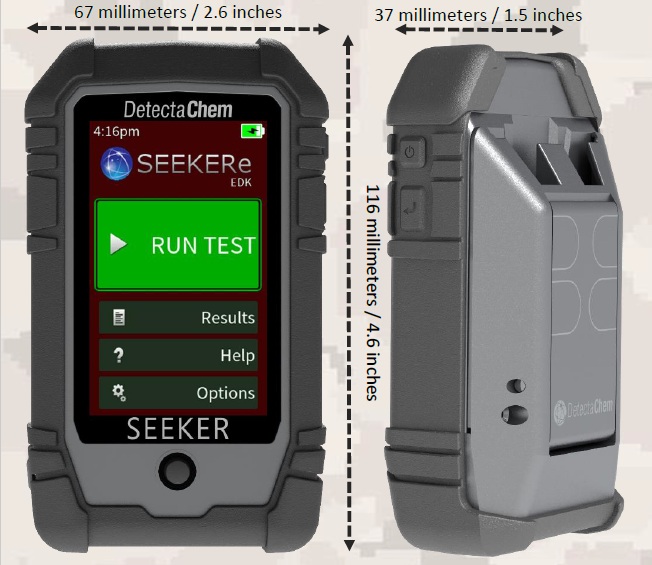

Dimensions
68 × 116 × 37 mm
68 × 116 × 37 mm
Display
Full-colour LCD, 240 × 400
Full-colour LCD, 240 × 400
Battery
Internal rechargeable lithium-ion
Internal rechargeable lithium-ion
Environmental Protection
IP66; ruggedized / shockproof
IP66; ruggedized / shockproof
Data Transfer
USB, recordable CD-R, encrypted wireless
USB, recordable CD-R, encrypted wireless
Storage Capacity
>100,000 tests
>100,000 tests
Languages
Multiple languages
Multiple languages
Explosives Detected
Nitroaromatics, nitramines, nitrate esters, HMEs, inorganic nitrates, peroxides, perchlorates, chlorates and derivatives
Same explosive detection
Narcotics Detection
-
Available
*The approximately 500 ng detection limit and 10–45 second analysis time are reported in the U.S. DHS SAVER assessment; current manufacturer specifications should be confirmed for the exact supplied configuration.
The manufacturer’s current SEEKERe page lists 197 g, 68 × 116 × 37 mm, IP66 environmental protection and storage for more than 100,000 tests.
- KEY FEATURES
Built For Demanding Field Detection
SEEKERe combines portability, automated analysis, rugged construction and low-maintenance operation to support rapid threat screening in the field.

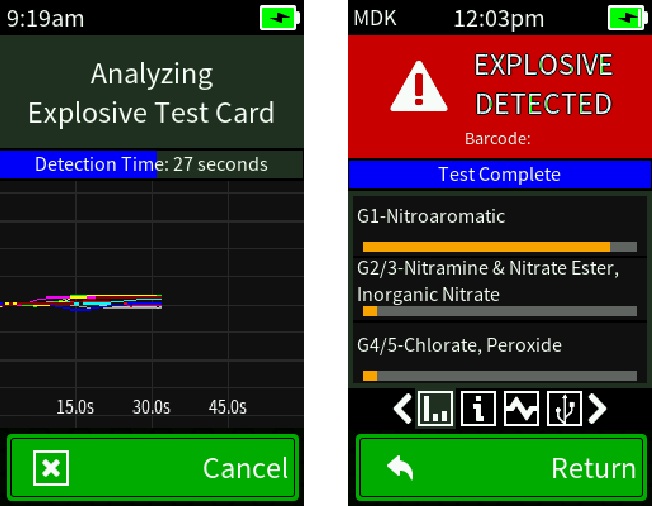

Automated Colorimetrics
Automated colorimetric analysis provides guided detection without relying on visual colour-reference charts.
Trace & Bulk Detection
The system is designed to analyze both trace and bulk samples using dedicated detection cards.
Compact Handheld Design
A small, lightweight form factor supports portable, one-handed operation in field environments.
Ruggedized Construction
The sealed enclosure is designed for demanding use, with IP66 water resistance and ruggedized shockproof construction.
Self-Monitoring
Intelligent self-monitoring and digital diagnostic capabilities help support straightforward field operation.
Rapid Readiness
DetectaChem states that SEEKERe can transition from powered-off to operational in under 30 seconds.
Low Maintenance
The system is designed for very low maintenance and reduced downtime between tests.
Onboard Data Storage
Test results can be stored onboard with test details and timestamps, supporting subsequent reporting and review.
Advanced Reporting
Reports can be generated and transferred through supported data-transfer methods for further reporting and record management.
Onboard User Assistance
Tutorial and training resources are available on the device to assist users with operation and sample collection.
- FOCUS SEGMENTS & APPLICATIONS
Detection Across Critical Security Environments
SEEKERe provides portable screening capabilities for organizations that need rapid field detection of explosive and, with the MDK configuration, narcotics threats.
DEFENSE
EOD & Ordnance Response
Purpose-built containment for military EOD and ordnance-response environments.
CIVIL AVIATION
Airport Security Operations
Containment support for airport security and controlled threat-response operations.
CARGO OPERATORS
Cargo Security Operations
Solutions for explosive-threat management across cargo handling and logistics environments.
AIRLINES
Airline Security Operations
Containment capabilities for airline operational and passenger-safety requirements.
HOME AFFAIRS
Public Security Agencies
Support for government security and specialist explosive-response agencies.
RAILWAYS
Rail & Transit Security
Containment solutions for rail networks, stations and transit environments.
HOSPITALITY
Venue Security Operations
Designed for hotels, venues and guest-facing environments with public safety requirements.
COMMERCIAL ESTABLISHMENTS
High-Footfall Facilities
Protection solutions for business sites and locations with significant public movement.
EMBASSIES & GOVERNMENT ESTABLISHMENTS
Diplomatic Security Operations
Containment capabilities for diplomatic missions and government facilities.
- FREQUENTLY ASKED QUESTIONS (FAQs)
Everything About SEEKERe Detection Systems
What is the SEEKERe MDK / EDK?
SEEKERe is a compact handheld detection system from DetectaChem designed for portable field screening. The EDK is configured for explosives, while the MDK provides both explosives and narcotics detection.
What is the difference between EDK and MDK?
The SEEKERe EDK is an Explosive Detection Kit, while the SEEKERe MDK is a Multi Detection Kit combining explosive and narcotics detection capabilities.
What detection technology does SEEKERe use?
SEEKERe uses automated colorimetrics with dedicated detection cards to analyze collected samples and provide automated detection results.
What types of explosives can SEEKERe detect?
The manufacturer lists detection capability covering nitroaromatics, nitramines, nitrate esters, HMEs, inorganic nitrates, peroxides, perchlorates, chlorates and derivatives.
Is SEEKERe suitable for field operations?
Yes. SEEKERe is designed as a portable, ruggedized field detector, with IP66 environmental protection, rechargeable battery power and one-handed operation.
How quickly can SEEKERe perform an analysis?
The U.S. DHS SAVER assessment reports approximately 10–45 seconds for sample analysis, depending on the test. DetectaChem also states that the unit can be ready for testing from powered-off status in under 30 seconds.
Can SEEKERe store and transfer test results?
Yes. DetectaChem states that SEEKERe can store more than 100,000 tests onboard and supports data transfer through USB, recordable CD-R and encrypted wireless connectivity.
