- EOD EQUIPMENT SOLUTIONS
DynaKEEPR Series
Discreet blast-mitigation litter bins engineered to absorb explosive energy, capture dangerous fragments and enhance protection in high-footfall public environments.
Models Offered: L1, L2, L3-30, L3-40, L4
- OVERVIEW
Discreet Protection For Public Spaces

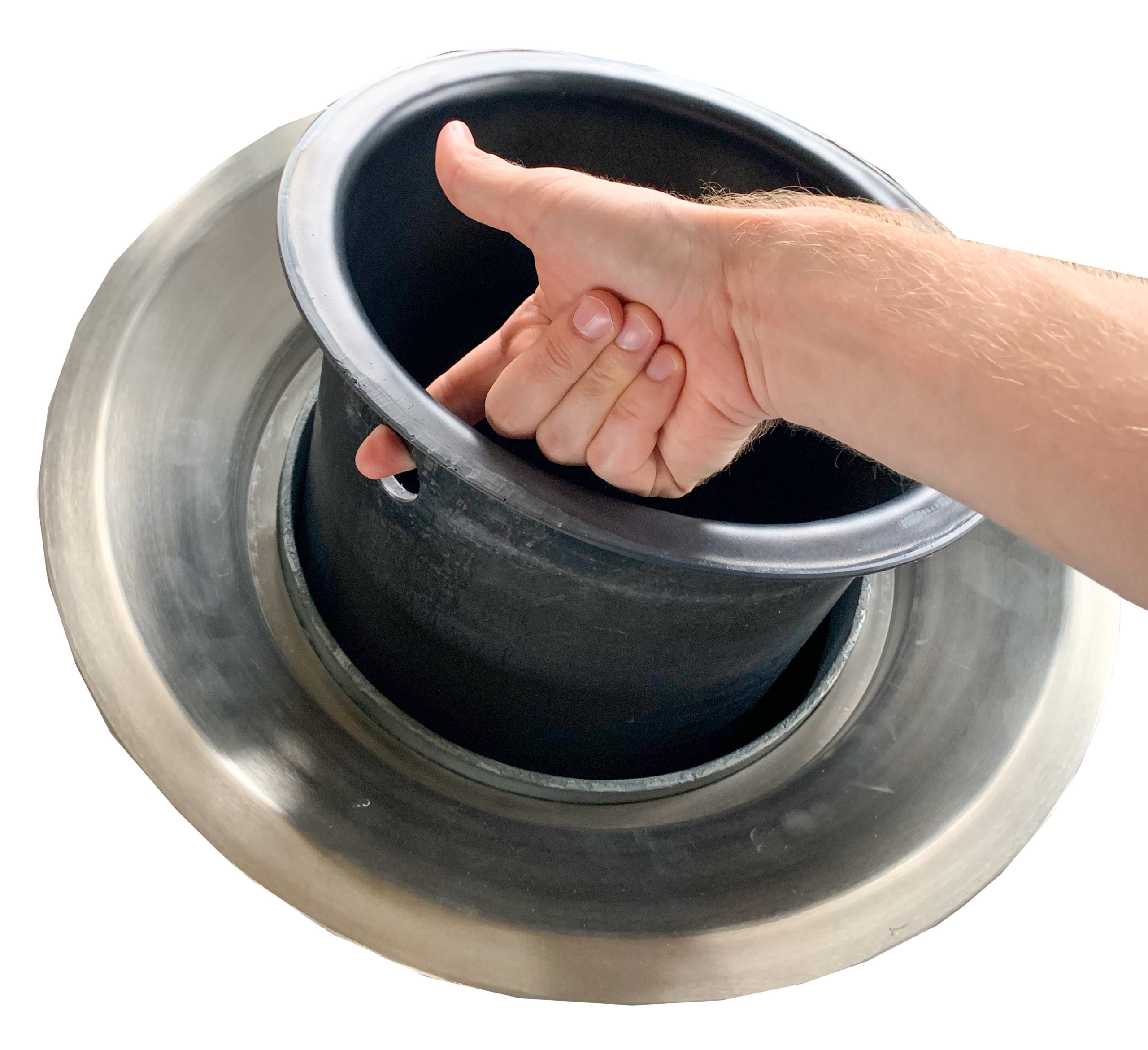

The DynaKEEPR Series is designed to minimize the impact of an explosive device concealed inside a litter bin. Its innovative liquid liner helps absorb blast energy, reduce the fireball effect and capture high-speed fragments that could potentially harm people nearby.

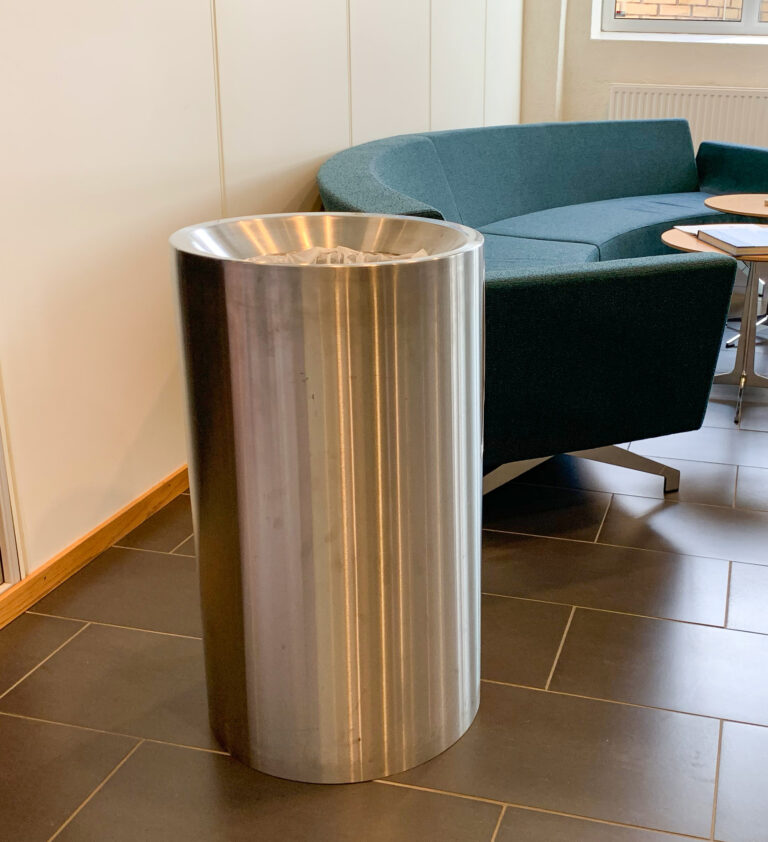

Designed with an attractive Swedish aesthetic, DynaKEEPR bins can integrate naturally into public environments without creating an intrusive security appearance. Available in multiple sizes, capacities and finishes, the series provides adaptable blast-mitigation solutions for venues ranging from hotels and shopping malls to high-risk public locations.
Up To 3 kg C4
The DynaKEEPR is described as capable of containing an explosion of up to 3 kg of C4.
Venue Integration

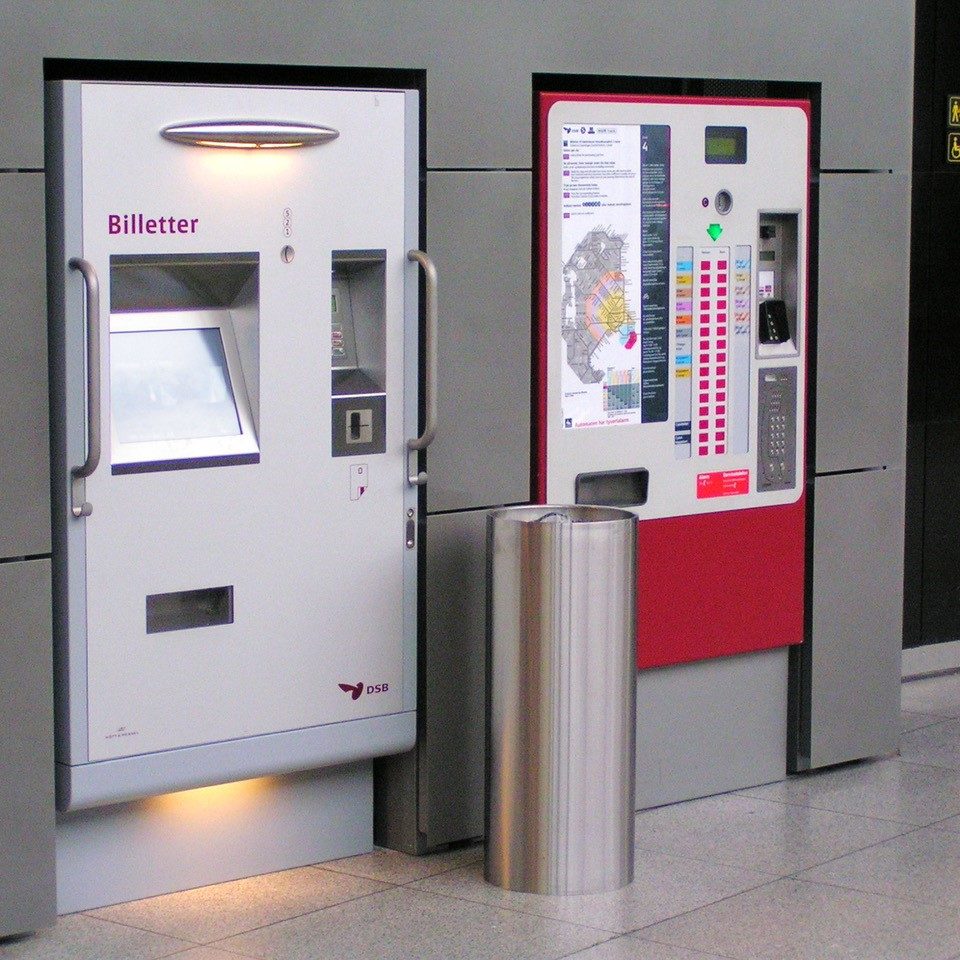

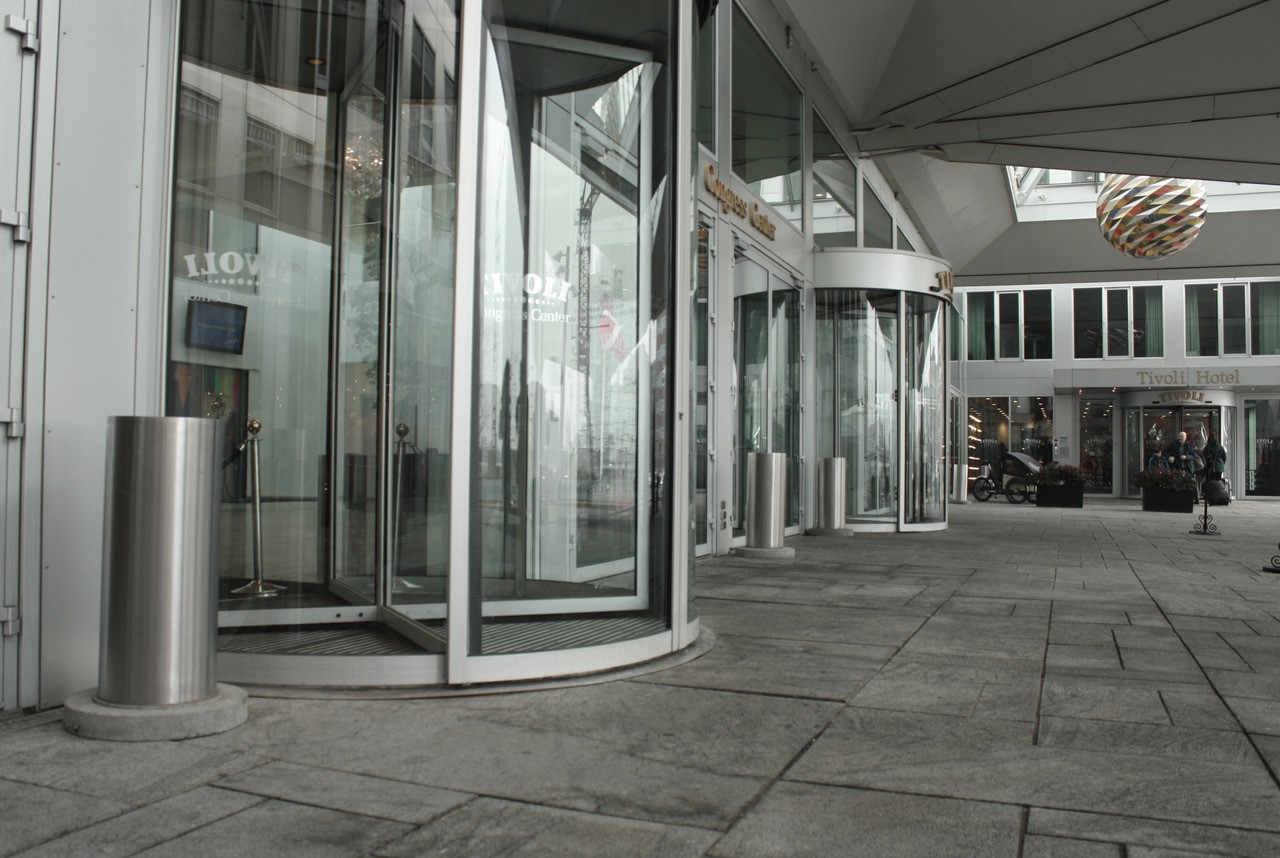

The litter-bin format enables the security solution to be incorporated into existing public-space environments without requiring a separate security installation.
Placement Flexibility
Different DynaKEEPR models provide configurations suited to tight spaces, shopping malls, general venues and high-risk locations.
Finish Options
Available in painted and anodized aluminium finishes to complement different environments.
- TECHINICAL SPECIFICATIONS
DynaSEALR Q5 Technical Specifications
The DynaSEALR Q5 combines compact dimensions, controlled explosive capacity and flexible mounting configurations for demanding EOD applications.
Technical Specifications
Characteristic
DynaKEEPR L1
DynaKEEPR L2
DynaKEEPR L3-30
DynaKEEPR L3-40
DynaKEEPR L4
Litter capacity
30L /8 gallons
55L /14.5 gallons
115L /30 gallons
151L /40 gallons
70L /18 gallons
Diameter Ø
30.5 cm /2”
45.7 cm /18”
55.9 cm /22”
55.9 cm /22”
55.9 cm /22”
Height
85.1 cm /33.5”
80 cm /35”
105 cm /41”
105 cm /41”
105 cm /41”
Total Weight
112kg /247 lbs.
278 kg /613 lbs.
411 kg /906 lbs.
411 kg /906 lbs.
591 kg /1303 lbs.
ASTM
-
-
-
YES
YEs
Finishes
Painted and anodized aluminum
Applications
Hotels, Tight Spaces
Shopping Malls
All Venues
All Venues
High Risk Venues
- KEY FEATURES
Designed For Discreet Blast Protection
DynaKEEPR combines blast-mitigation technology with practical litter-bin functionality to provide an unobtrusive layer of protection in public environments.
Blast Energy Absorption
The liquid liner is designed to absorb explosive energy and reduce the impact of the blast.
Fireball Reduction
The innovative liquid liner helps reduce the fireball effect generated during an explosion.
Fragment Capture
The system is designed to capture high-speed fragments that could potentially injure bystanders.
Aluminium Finishes
Painted and anodized aluminium finishes allow the bins to complement different architectural and interior environments.
Blast Mitigation
DynaKEEPR provides a dedicated blast-mitigation solution for explosive devices concealed inside litter bins.
Tested & Certified
The range has been tested and certified against applicable HOSDB and ASTM requirements, according to the supplied product information.
Discreet Design
The attractive Swedish design allows the bin to integrate naturally into public and commercial environments.
Multiple Capacities
Five models provide different litter capacities and physical configurations for varied applications.
- FOCUS SEGMENTS & APPLICATIONS
Designed for Diverse Threat Response
The DynaSEALR Q5 is suited to organizations requiring a compact and mobile containment solution for explosive-threat response. Its flexible mounting configurations support deployment across security, public-safety and specialist EOD environments.
DEFENSE
EOD & Ordnance Response
Purpose-built containment for military EOD and ordnance-response environments.
CIVIL AVIATION
Airport Security Operations
Containment support for airport security and controlled threat-response operations.
CARGO OPERATORS
Cargo Security Operations
Solutions for explosive-threat management across cargo handling and logistics environments.
AIRLINES
Airline Security Operations
Containment capabilities for airline operational and passenger-safety requirements.
HOME AFFAIRS
Public Security Agencies
Support for government security and specialist explosive-response agencies.
RAILWAYS
Rail & Transit Security
Containment solutions for rail networks, stations and transit environments.
HOSPITALITY
Venue Security Operations
Designed for hotels, venues and guest-facing environments with public safety requirements.
COMMERCIAL ESTABLISHMENTS
High-Footfall Facilities
Protection solutions for business sites and locations with significant public movement.
EMBASSIES & GOVERNMENT ESTABLISHMENTS
Diplomatic Security Operations
Containment capabilities for diplomatic missions and government facilities.
- FREQUENTLY ASKED QUESTIONS (FAQs)
Everything About The DynaKEEPR Series
What is the DynaKEEPR Series?
DynaKEEPR is a range of blast-mitigation litter bins designed to reduce the impact of an explosive device concealed inside a waste bin.
How does DynaKEEPR help mitigate an explosion?
Its innovative liquid liner is designed to absorb blast energy, reduce the fireball effect and help capture high-speed fragments.
Which DynaKEEPR models are available?
The supplied product information states that DynaKEEPR is capable of containing an explosion of up to 3 kg of C4. Specific performance should be assessed against the applicable model and certification requirements.
Which DynaKEEPR models are available?
The supplied product information states that DynaKEEPR is capable of containing an explosion of up to 3 kg of C4. Specific performance should be assessed against the applicable model and certification requirements.
Is DynaKEEPR tested and certified?
The supplied information states that the range has been tested and certified in compliance with applicable HOSDB and ASTM standards. Certification levels vary by model.
Where can DynaKEEPR be used?
The supplied information states that the range has been tested and certified in compliance with applicable HOSDB and ASTM standards. Certification levels vary by model.
Can DynaKEEPR match different venue designs?
Yes. The series is available in painted and anodized aluminium finishes, allowing the units to integrate with different architectural and interior environments.
